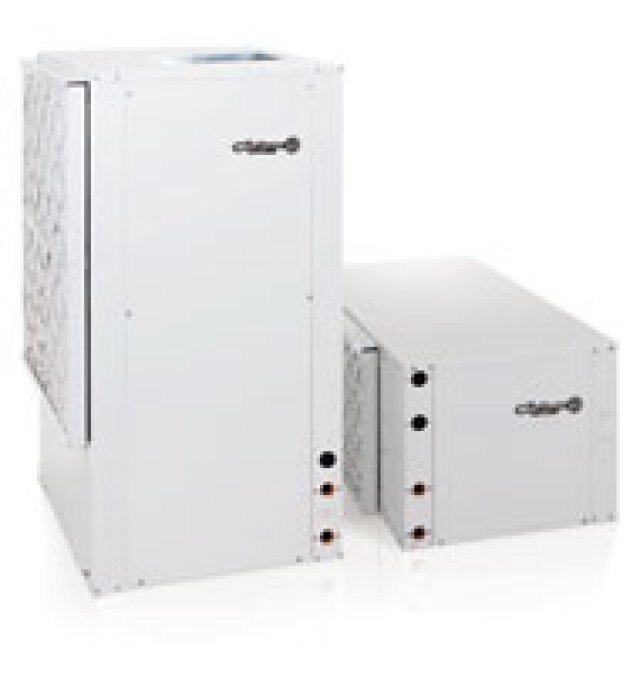

Versatec Ultra
The Versatec Ultra Series represents a significant improvement in the commercial water source heat pump (wshp). The product features high efficiency with industry leading standard options in a compact cabinet suitable for both retrofit and new construction applications. It is also designed to provide optimum performance and flexibility in both water loop and geothermal applications.
|
|
Key Features
|
-
Compressor: Scroll or rotary single speed, in commercial voltages, mounted on a double isolation system. Also available with Super Quiet Sound Package for improved noise reduction.
-
Blower Inlet Rings: Allow for easy motor and blower removal without disconnecting from the unit duct work.
-
Hot Gas Bypass/Hot Gas Reheat: For optimal humidity control in schools, computer rooms, auditoriums and theatres.
-
Water Lines: Flush mount connections allow one wrench leak-free connections without a back-up.
-
Water Valve: Optional factory installed, low pressure drop (high Cv) water solenoid valve for variable speed pumping applications.
-
Filter: Optional 1” MERV 4 disposable filter or 2” Pleated MERV 13 (for LEED certification points).
-
Cabinet: Heavy gauge, environmentally responsible galvanized steel for maximum corrosion resistance. Also available with high density, foil faced cabinet insulation for improved air quality and easy cleaning.
-
Formshield: Coating for added protection against formicary corrosion.
-
Blower Motor: PSC blower motors provide high efficiency while allowing quiet operation and a wide range of airflow selections. Optional variable speed ECM blower motors are available for improve efficiency and comfort.
-
Soft Start: IntelliStart™ reduces the amount of current needed to activate the unit by 60-70%. This helps alleviate light flicker, reduces start-up noise and increases compressor life. Helpful in applications when WaterFurnace units are to run off-the-grid.
-
Thermashield: Proprietary coating applied to water-to-refrigerant heat exchanger that protects against condensations in extended range applications (below 50 °F).
-
Controls: Versatec microprocessor control is standard. Optional FX-10 microprocessor control, featuring N2, LonWorks, and BAC net compatibility.
|
