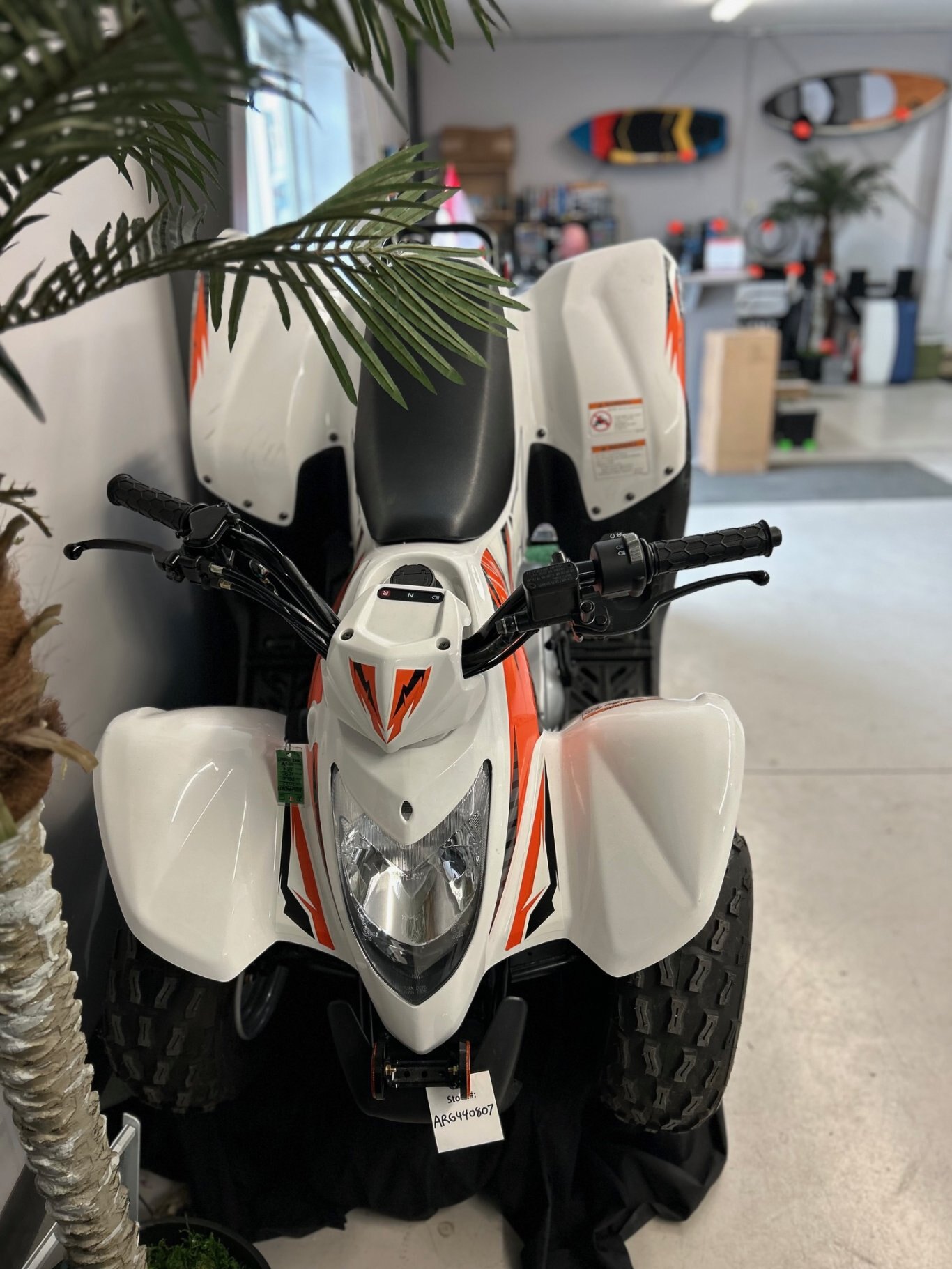

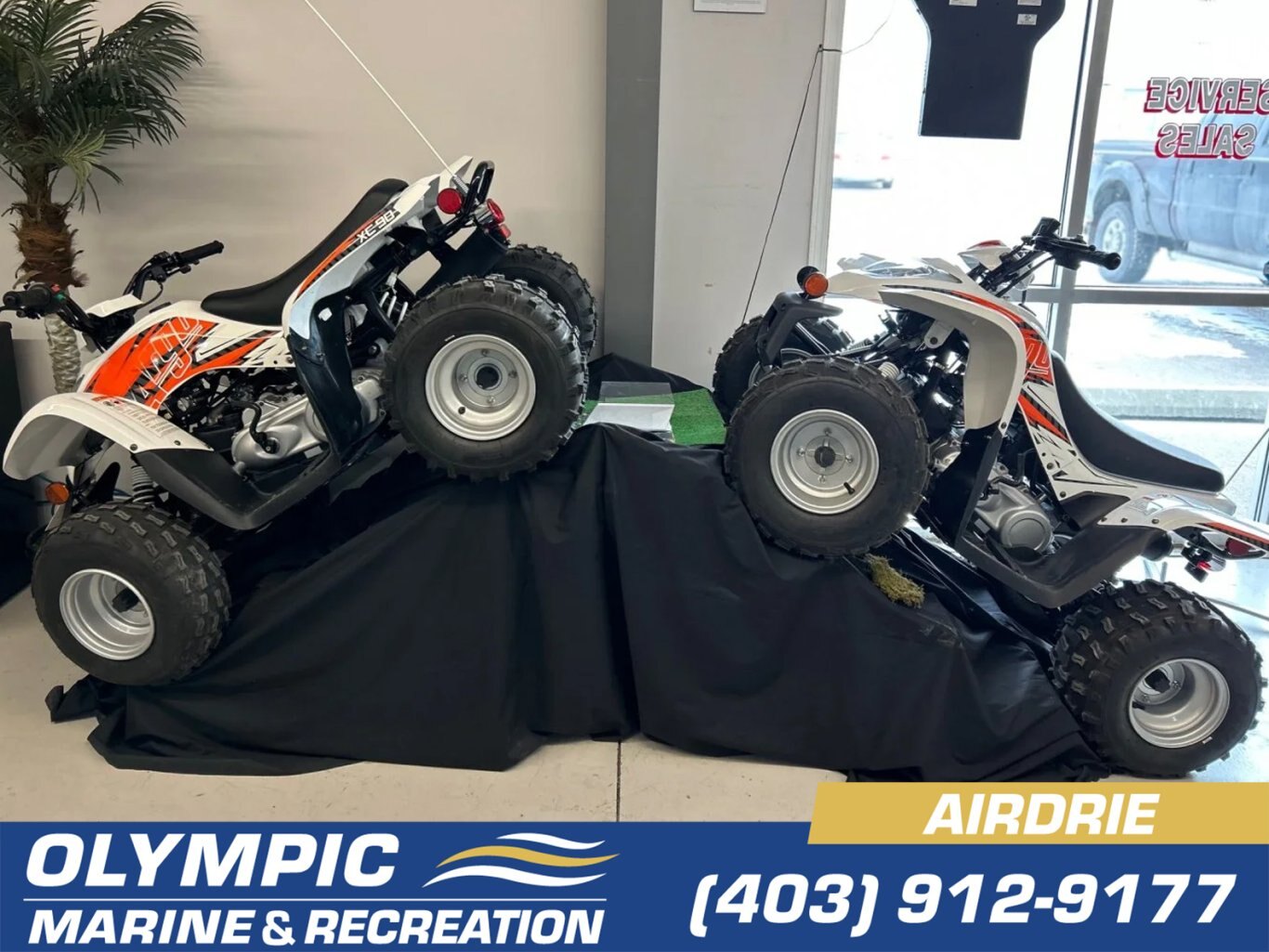

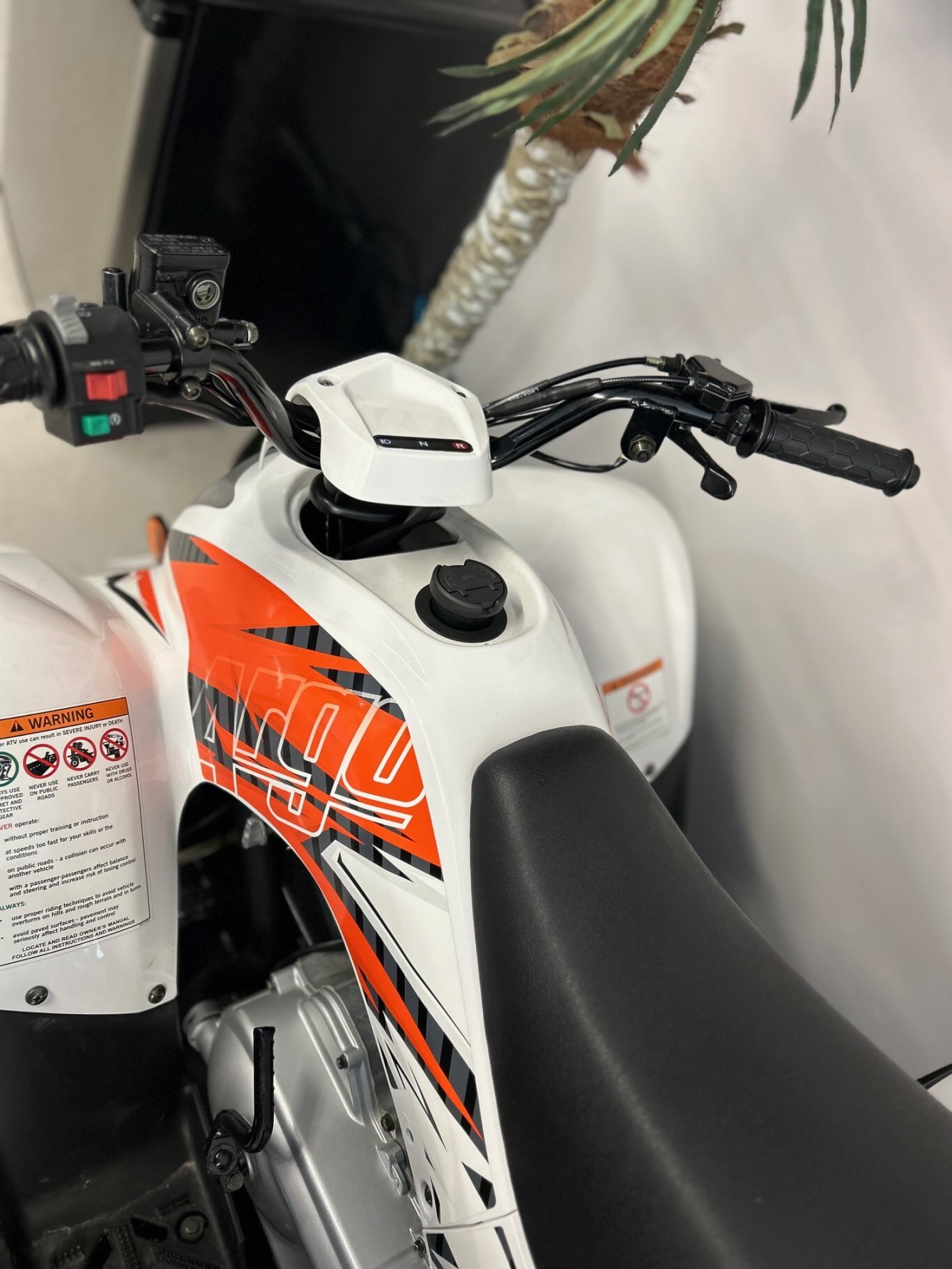

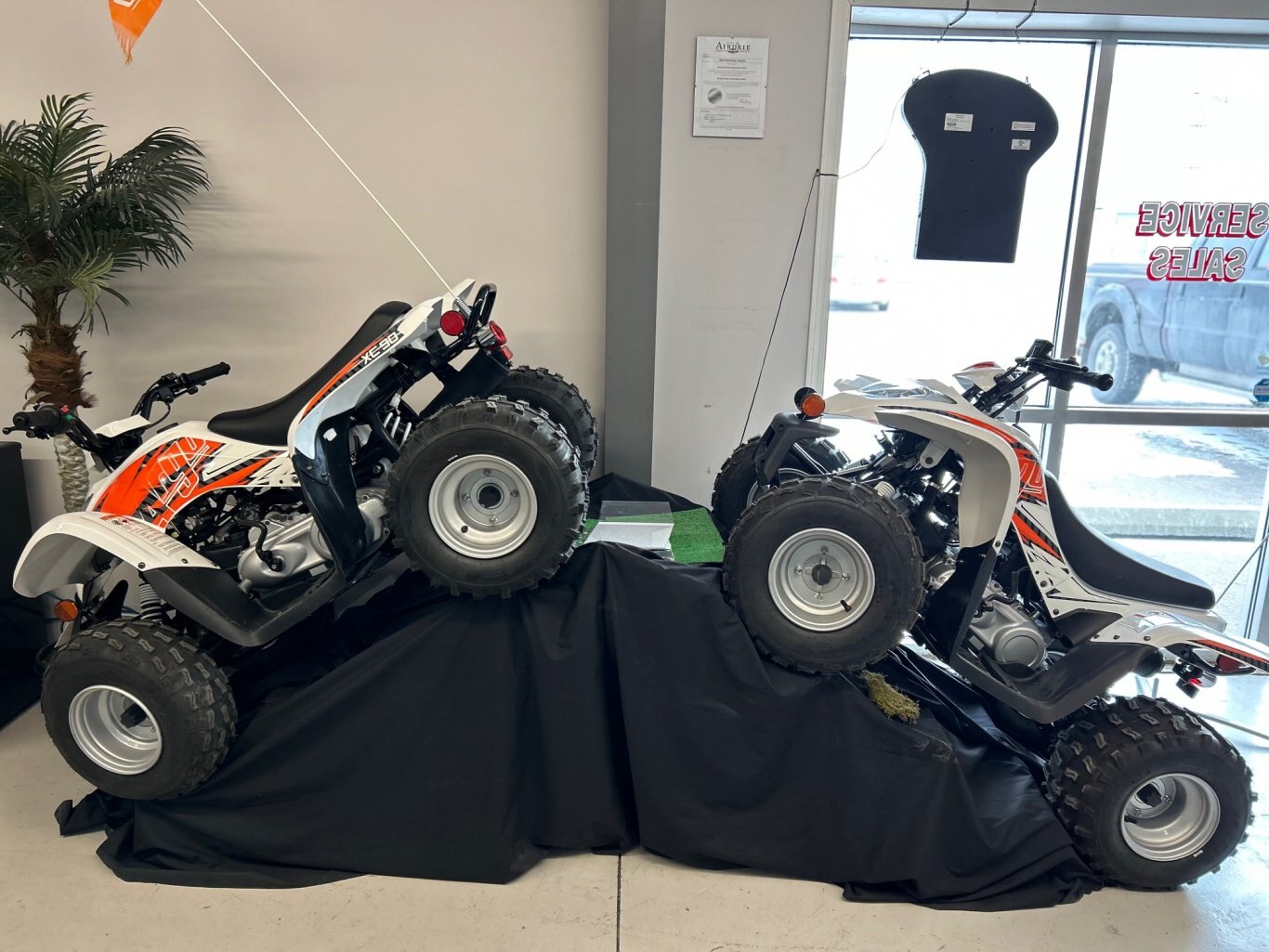

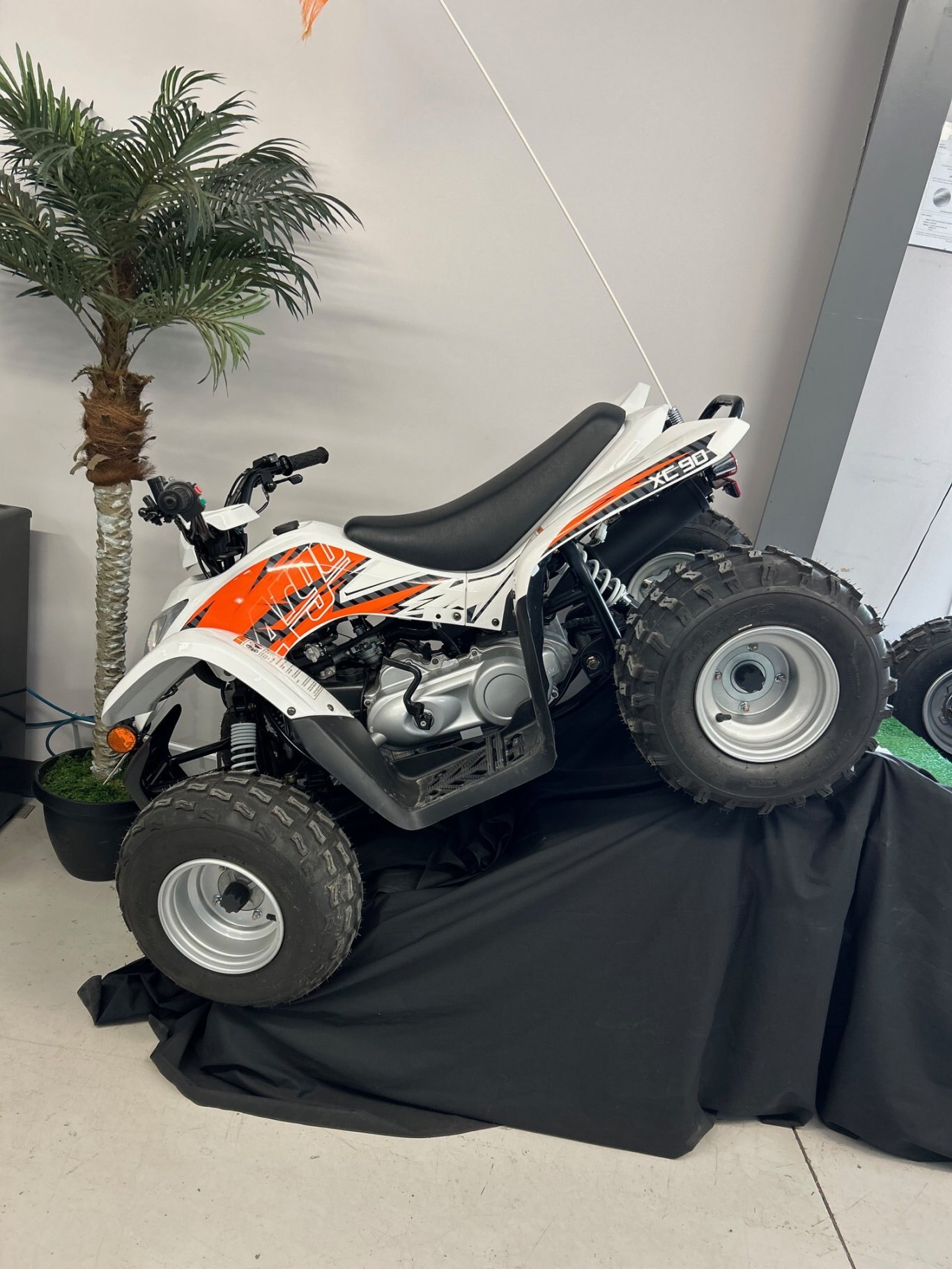

Xplorer XC 90

START WITH SAFETY.

Watch your child’s eyes light up. The ARGO Youth XC Series is a new milestone of fun for kids 12 years of age and up. They’ve been watching you on your ATV for years and now it’s their turn to call the XC 90 their own. What. A. Thrill. This youth ATV is a perfect way to introduce your young rider to the responsibilities of riding smart and safe, with the awareness of others. The XC 90 has many safety features straight from the factory, including an adjustable throttle for limiting speed, a four-foot hi-vis orange whip flag for added safety and a handlebar tether cord adults can pull as a remote shut-off switch to halt the fan-cooled, 4-stroke engine. Fun for all, all for fun.

Specifications:

Displacement:90cc

Engine Stroke:4-Stroke

Cylinder Arrangement: Sohc Single-Cylinder

Valve Configuration: 2 Valve

Fuel System: Carburetor

Cooling System: Fan

Bore X Stroke: 47 x 51.8MM

Compression Ratio: 10:01

Start Method: Electric Start/Kick Start

Ignition: CDI

Override Button: N/A

Transmission:

Smooth in any direction. The durable automatic CV transmission offers three gear positions — forward, neutral and reverse.

Single A-Arm Suspension:

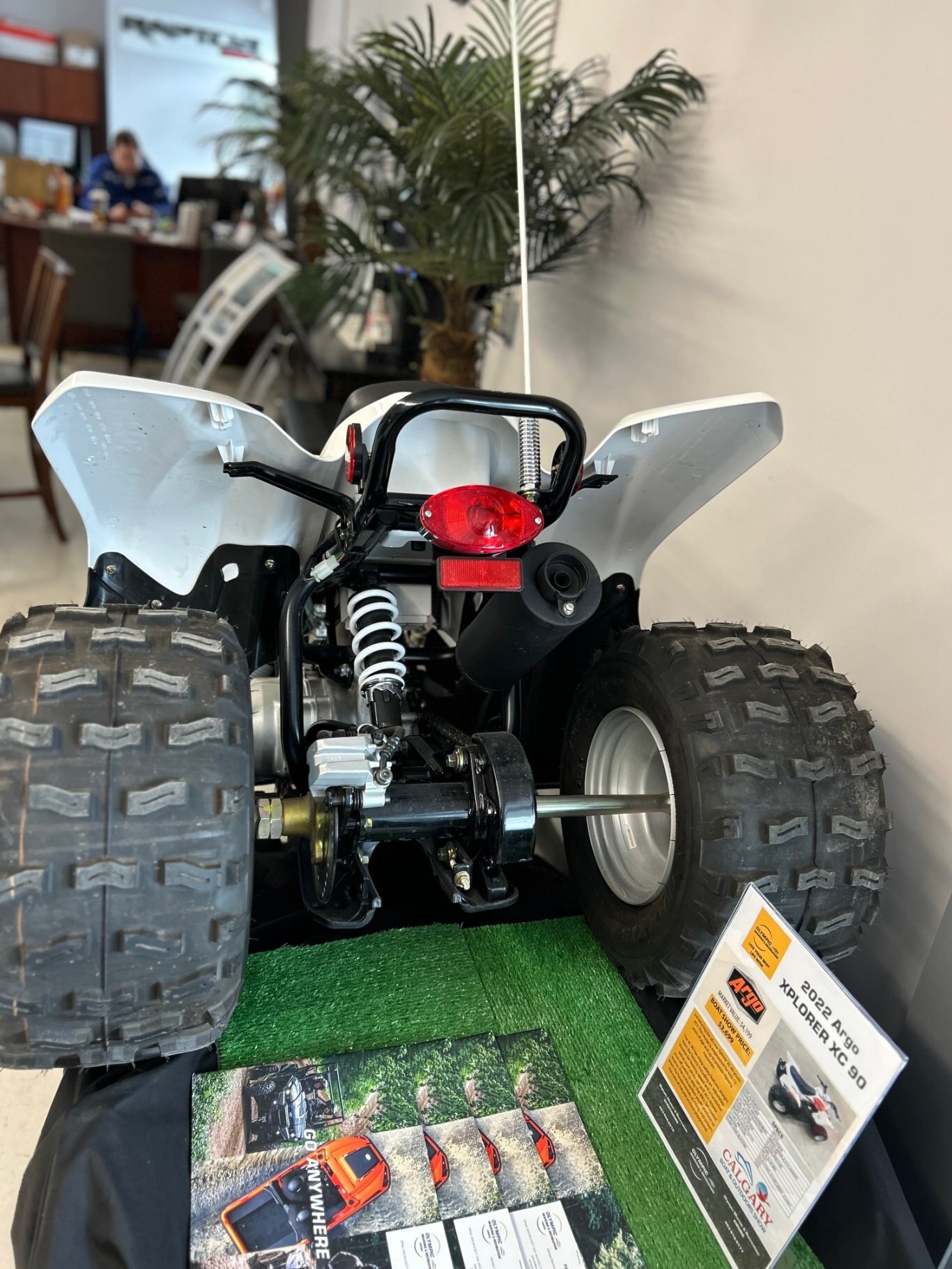

The XC 90 offers a smooth ride with independent single A-arm suspension (2.8” front travel) and swing arm suspension (2.9” rear travel).

Single High/Low Beam Headlights:

Safety first and foremost. Front-mounted single headlight, rear taillight and brake light provides added visibility during all hours of operation.

Safety:

The XC 90 prioritizes safety with an adjustable throttle, adult-controlled tether cord, and a visible orange whip flag helps you and other vehicles always keep an eye on your young rider.
